G10 Tubes Glass Reinforced Epoxy - .031" Wall
(Micarta) (High Pressure Laminates)
G10 Glass Reinforced Epoxy - natural
(yellowish to light green) Technical Data Sheet
Chemical Resistance Chart
The most versatile all-around laminate and
composite, this grade is a continuous glass woven fabric base impregnated
with an epoxy resin binder. It has extremely high mechanical strength, good
dielectric loss properties, and good electric strength properties, both wet and
dry.
NEMA G-10 MIL-I-24768/2 GEE, IPC
4101/20, IEC 60893-3 Type 2 EP GC 201
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2
EP GC 202

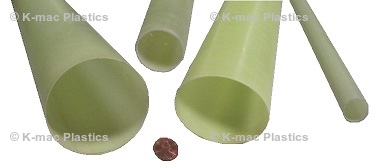

G10 FR4 Tubes with a .031" (1/32) Wall Thickness |
||
| **Minimum's Apply, Non Stocked Item | ||
| Item Details | Outside Diameter (in.) | Inside Diameter (in.) |
|---|---|---|
| KM-1331 | 0.188 | 0.125 |
| KM-1333 | 0.250 | 0.188 |
| KM-3115V | 0.281 | 0.218 |
| KM-1337 | 0.312 | 0.250 |
| KM-1341 | 0.375 | 0.312 |
| KM-1345 | 0.437 | 0.375 |
| KM-1349 | 0.500 | 0.437 |
| KM-1353 | 0.562 | 0.500 |
| KM-1359 | 0.625 | 0.563 |
| KM-1364 | 0.687 | 0.625 |
| KM-1370 | 0.750 | 0.688 |
| KM-1373 | 0.812 | 0.750 |
| KM-1286V | 0.875 | 0.812 |
| KM-1378 | 0.937 | 0.875 |
| KM-5828 | 1.000 | 0.937 |
| KM-5835 | 1.031 | 0.969 |
| KM-5198 | 1.062 | 1.000 |
| KM-5837 | 1.094 | 1.031 |
| KM-5838 | 1.125 | 1.062 |
| KM-5839 | 1.156 | 1.094 |
| KM-5840 | 1.187 | 1.125 |
| KM-5841 | 1.250 | 1.187 |
| KM-5842 | 1.312 | 1.250 |
| KM-5843 | 1.375 | 1.312 |
| KM-5844 | 1.437 | 1.375 |
| KM-5845 | 1.500 | 1.437 |
| KM-5846 | 1.562 | 1.500 |
| KM-5847 | 1.625 | 1.562 |
| KM-5848 | 1.687 | 1.625 |
| KM-5829 | 1.750 | 1.687 |
| KM-5849 | 1.812 | 1.750 |
| KM-5850 | 1.937 | 1.875 |
| KM-5851 | 2.031 | 1.969 |
| KM-5852 | 2.094 | 2.031 |
| KM-5853 | 2.125 | 2.062 |
| KM-5854 | 2.156 | 2.094 |
| KM-5855 | 2.187 | 2.125 |
| KM-5856 | 2.250 | 2.187 |
| KM-5857 | 2.312 | 2.250 |
| KM-4624 | 2.375 | 2.312 |
| KM-5858 | 2.437 | 2.375 |
| KM-5859 | 2.500 | 2.437 |
| KM-5860 | 2.562 | 2.500 |
| KM-5861 | 2.625 | 2.562 |
| KM-5862 | 2.687 | 2.625 |
| KM-5863 | 2.750 | 2.687 |
| KM-5864 | 2.812 | 2.750 |
| KM-5865 | 2.937 | 2.875 |
| .031" Walls are not available in OD's = to or larger than 3.00" | ||
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
