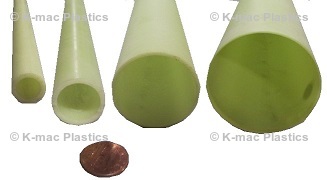

G10 Tubes Glass Reinforced Epoxy - .093" Wall
(Micarta) (High Pressure Laminates)
G10 Glass Reinforced Epoxy - natural
(yellowish to light green) Technical Data Sheet
Chemical Resistance Chart
The most versatile all-around laminate and
composite, this grade is a continuous glass woven fabric base impregnated
with an epoxy resin binder. It has extremely high mechanical strength, good
dielectric loss properties, and good electric strength properties, both wet and
dry.
NEMA G-10 MIL-I-24768/2 GEE, IPC
4101/20, IEC 60893-3 Type 2 EP GC 201
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2
EP GC 202
| G10 FR4 Tubes with a .093" (3/32) Wall Thickness | ||
| **Minimum's Apply, Non Stocked Item | ||
| Item Details | Outside Diameter (in.) | Inside Diameter (in.) |
|---|---|---|
| KM-1335 | 0.375 | 0.188 |
| KM-1339 | 0.437 | 0.250 |
| KM-5074 | 0.484 | 0.312 |
| KM-1343 | 0.500 | 0.312 |
| KM-1347 | 0.562 | 0.375 |
| KM-1351 | 0.625 | 0.437 |
| KM-1355 | 0.687 | 0.500 |
| KM-6018 | 0.750 | 0.562 |
| KM-1366 | 0.812 | 0.625 |
| KM-1375 | 0.937 | 0.750 |
| KM-6019 | 1.000 | 0.812 |
| KM-6020 | 1.031 | 0.844 |
| KM-1384 | 1.062 | 0.875 |
| KM-6022 | 1.125 | 0.937 |
| KM-6023 | 1.156 | 0.970 |
| KM-1390 | 1.187 | 1.000 |
| KM-6024 | 1.250 | 1.062 |
| KM-6025 | 1.312 | 1.125 |
| KM-6026 | 1.375 | 1.187 |
| KM-6027 | 1.437 | 1.250 |
| KM-6028 | 1.500 | 1.312 |
| KM-6029 | 1.562 | 1.375 |
| KM-6030 | 1.625 | 1.437 |
| KM-6031 | 1.687 | 1.500 |
| KM-5824 | 1.750 | 1.562 |
| KM-6032 | 1.812 | 1.625 |
| KM-6033 | 1.937 | 1.750 |
| KM-6034 | 2.000 | 1.812 |
| KM-6035 | 2.031 | 1.844 |
| KM-6036 | 2.062 | 1.875 |
| KM-6037 | 2.094 | 1.907 |
| KM-6038 | 2.125 | 1.937 |
| KM-6039 | 2.156 | 1.970 |
| KM-6040 | 2.187 | 2.000 |
| KM-6041 | 2.250 | 2.062 |
| KM-6042 | 2.312 | 2.125 |
| KM-6043 | 2.375 | 2.187 |
| KM-6044 | 2.437 | 2.250 |
| KM-6045 | 2.500 | 2.312 |
| KM-6046 | 2.562 | 2.375 |
| KM-6047 | 2.625 | 2.437 |
| KM-6048 | 2.687 | 2.500 |
| KM-5832 | 2.750 | 2.562 |
| KM-6049 | 2.812 | 2.625 |
| KM-6050 | 2.937 | 2.750 |
| KM-5825 | 3.000 | 2.812 |
| KM-6051 | 3.031 | 2.844 |
| KM-6052 | 3.062 | 2.875 |
| KM-6053 | 3.094 | 2.907 |
| KM-6054 | 3.125 | 2.937 |
| KM-6055 | 3.156 | 2.970 |
| KM-6056 | 3.187 | 3.000 |
| KM-6056W | 3.250 | 3.062 |
| KM-6057 | 3.312 | 3.125 |
| KM-6058 | 3.375 | 3.187 |
| KM-6059 | 3.437 | 3.250 |
| KM-6060 | 3.500 | 3.312 |
| KM-6061 | 3.562 | 3.375 |
| KM-6062 | 3.625 | 3.437 |
| KM-6063 | 3.687 | 3.500 |
| KM-6064 | 3.750 | 3.562 |
| KM-6065 | 3.812 | 3.625 |
| KM-6066 | 3.937 | 3.750 |
| KM-6066W | 4.000 | 3.812 |
| KM-6067 | 4.031 | 3.844 |
| KM-6068 | 4.062 | 3.875 |
| KM-6069 | 4.094 | 3.907 |
| KM-6070 | 4.125 | 3.937 |
| KM-6071 | 4.156 | 3.970 |
| KM-6072 | 4.187 | 4.000 |
| KM-5833 | 4.250 | 4.062 |
| KM-6073 | 4.312 | 4.125 |
| KM-6074 | 4.375 | 4.187 |
| KM-6075 | 4.437 | 4.250 |
| KM-5933 | 4.500 | 4.312 |
| KM-6076 | 4.562 | 4.375 |
| KM-6077 | 4.625 | 4.437 |
| KM-6078 | 4.687 | 4.500 |
| KM-6079 | 4.750 | 4.562 |
| KM-6080 | 4.812 | 4.625 |
| KM-6081 | 4.937 | 4.750 |
| KM-1456P | 5.000 | 4.812 |
| KM-6082 | 5.031 | 4.844 |
| KM-6083 | 5.062 | 4.875 |
| KM-6084 | 5.094 | 4.907 |
| KM-6085 | 5.125 | 4.937 |
| KM-6086 | 5.156 | 4.970 |
| KM-6087 | 5.187 | 5.000 |
| KM-6088 | 5.250 | 5.062 |
| KM-6089 | 5.312 | 5.125 |
| KM-6090 | 5.375 | 5.187 |
| KM-6091 | 5.437 | 5.250 |
| KM-6092 | 5.500 | 5.312 |
| KM-6093 | 5.562 | 5.375 |
| KM-6094 | 5.625 | 5.437 |
| KM-6095 | 5.687 | 5.500 |
| KM-6096 | 5.750 | 5.562 |
| KM-6097 | 5.812 | 5.625 |
| KM-6098 | 5.937 | 5.750 |
| KM-6099 | 6.000 | 5.812 |
| KM-6100 | 6.031 | 5.844 |
| KM-6101 | 6.062 | 5.875 |
| KM-6102 | 6.094 | 5.907 |
| KM-6103 | 6.125 | 5.937 |
| KM-6104 | 6.156 | 5.970 |
| KM-5736 | 6.187 | 6.000 |
| KM-6105 | 6.250 | 6.062 |
| KM-6106 | 6.312 | 6.125 |
| KM-6107 | 6.375 | 6.187 |
| KM-5723 | 6.437 | 6.250 |
| KM-6108 | 6.500 | 6.312 |
| KM-6109 | 6.562 | 6.375 |
| KM-6110 | 6.625 | 6.437 |
| KM-6111 | 6.687 | 6.500 |
| KM-6112 | 6.750 | 6.562 |
| KM-6113 | 6.812 | 6.625 |
| KM-6114 | 6.937 | 6.750 |
| KM-6115 | 7.000 | 6.812 |
| KM-6116 | 7.031 | 6.844 |
| KM-6117 | 7.062 | 6.875 |
| KM-6118 | 7.094 | 6.907 |
| KM-6119 | 7.125 | 6.937 |
| KM-6120 | 7.156 | 6.970 |
| KM-6121 | 7.187 | 7.000 |
| KM-6122 | 7.250 | 7.062 |
| KM-6123 | 7.312 | 7.125 |
| KM-6124 | 7.375 | 7.187 |
| KM-6125 | 7.437 | 7.250 |
| KM-6126 | 7.500 | 7.312 |
| KM-6127 | 7.562 | 7.375 |
| KM-6128 | 7.625 | 7.437 |
| KM-6129 | 7.687 | 7.500 |
| KM-6130 | 7.750 | 7.562 |
| KM-6131 | 7.812 | 7.625 |
| KM-5731 | 7.937 | 7.750 |
| KM-6132 | 8.000 | 7.812 |
| KM-6133 | 8.031 | 7.844 |
| KM-6134 | 8.062 | 7.875 |
| KM-6135 | 8.094 | 7.907 |
| KM-6136 | 8.125 | 7.937 |
| KM-6137 | 8.156 | 7.970 |
| KM-6138 | 8.187 | 8.000 |
| KM-6140 | 8.312 | 8.125 |
| KM-6141 | 8.375 | 8.187 |
| KM-6142 | 8.437 | 8.250 |
| KM-6143 | 8.500 | 8.312 |
| KM-6144 | 8.562 | 8.375 |
| KM-6145 | 8.625 | 8.437 |
| KM-6146 | 8.687 | 8.500 |
| KM-6147 | 8.750 | 8.562 |
| KM-6148 | 8.812 | 8.625 |
| KM-6149 | 8.937 | 8.750 |
| KM-6150 | 9.000 | 8.812 |
| KM-6151 | 9.031 | 8.844 |
| KM-6152 | 9.062 | 8.875 |
| KM-6153 | 9.094 | 8.907 |
| KM-6154 | 9.125 | 8.937 |
| KM-6155 | 9.156 | 8.970 |
| KM-6156 | 9.187 | 9.000 |
| KM-6157 | 9.250 | 9.062 |
| KM-6158 | 9.312 | 9.125 |
| KM-6159 | 9.375 | 9.187 |
| KM-6160 | 9.437 | 9.250 |
| KM-6161 | 9.500 | 9.312 |
| KM-6162 | 9.562 | 9.375 |
| KM-6163 | 9.625 | 9.437 |
| KM-6164 | 9.687 | 9.500 |
| KM-6165 | 9.750 | 9.562 |
| KM-6166 | 9.812 | 9.625 |
| KM-6167 | 9.937 | 9.750 |
| KM-6168 | 10.000 | 9.812 |
| KM-6487X | 10.156 | 9.970 |
| KM-6488X | 10.187 | 10.000 |
| KM-6489X | 10.250 | 10.062 |
| KM-6490X | 10.312 | 10.125 |
| KM-6491X | 10.370 | 10.187 |
| KM-6492X | 10.437 | 10.250 |
| KM-6493X | 10.500 | 10.312 |
| KM-6494X | 10.562 | 10.375 |
| KM-6495X | 10.625 | 10.437 |
| KM-6496X | 10.687 | 10.500 |
| KM-6497X | 10.750 | 10.562 |
| KM-6499X | 10.937 | 10.750 |
| KM-6500X | 11.000 | 10.812 |
| KM-6501X | 11.031 | 10.845 |
| KM-6502X | 11.062 | 10.875 |
| KM-6503X | 11.094 | 10.907 |
| KM-6504X | 11.125 | 10.937 |
| KM-6505X | 11.156 | 10.970 |
| KM-6506X | 11.187 | 11.000 |
| KM-6507X | 11.250 | 11.000 |
| KM-6508X | 11.312 | 11.125 |
| KM-6509X | 11.375 | 11.187 |
| KM-6511X | 11.500 | 11.312 |
| KM-6512X | 11.562 | 11.375 |
| KM-6513X | 11.625 | 11.437 |
| KM-6514X | 11.687 | 11.500 |
| KM-6515X | 11.750 | 11.562 |
| KM-6516X | 11.812 | 11.625 |
| KM-6517X | 11.937 | 11.750 |
| KM-6518X | 12.000 | 11.812 |
| KM-6519X | 12.031 | 11.845 |
| KM-6520X | 12.062 | 11.875 |
| KM-6521X | 12.094 | 11.907 |
| KM-6522X | 12.125 | 11.937 |
| KM-6523X | 12.156 | 11.970 |
| KM-6524X | 12.187 | 12.000 |
| KM-6525X | 12.250 | 12.062 |
| KM-6527X | 12.375 | 12.187 |
| KM-6528X | 12.437 | 12.250 |
| KM-6529X | 12.500 | 12.312 |
| KM-6530X | 12.562 | 12.375 |
| KM-6531X | 12.625 | 12.437 |
| KM-6532X | 12.687 | 12.500 |
| KM-6533X | 12.750 | 12.562 |
| KM-6534X | 12.812 | 12.625 |
| KM-6535X | 12.937 | 12.750 |
| KM-6536X | 13.000 | 12.812 |
| KM-6537X | 13.031 | 12.845 |
| KM-6538X | 13.062 | 12.875 |
| KM-6539X | 13.094 | 12.907 |
| KM-6540X | 13.125 | 12.937 |
| KM-6541X | 13.156 | 12.970 |
| KM-6542X | 13.187 | 13.000 |
| KM-6543X | 13.250 | 13.062 |
| KM-6544X | 13.312 | 13.125 |
| KM-6545X | 13.375 | 13.187 |
| KM-6546X | 13.437 | 13.250 |
| KM-6547X | 13.500 | 13.312 |
| KM-6548X | 13.562 | 13.375 |
| KM-6549X | 13.625 | 13.437 |
| KM-6550X | 13.687 | 13.500 |
| KM-6552X | 13.812 | 13.625 |
| KM-6553X | 13.937 | 13.750 |
| KM-6484Q | 14.000 | 13.812 |
| KM-6483 | 14.031 | 13.845 |
| KM-6484 | 14.062 | 13.875 |
| KM-6485 | 14.094 | 13.907 |
| KM-6486 | 14.125 | 13.937 |
| KM-6487 | 14.156 | 13.970 |
| KM-6488 | 14.187 | 14.000 |
| KM-6489 | 14.250 | 14.062 |
| KM-6490 | 14.312 | 14.125 |
| KM-6491 | 14.375 | 14.187 |
| KM-6492 | 14.437 | 14.250 |
| KM-6493 | 14.500 | 14.312 |
| KM-6494 | 14.562 | 14.375 |
| KM-6495 | 14.625 | 14.437 |
| KM-6496 | 14.687 | 14.500 |
| KM-6497 | 14.750 | 14.562 |
| KM-6498 | 14.812 | 14.625 |
| KM-6499 | 14.937 | 14.750 |
| KM-6500 | 15.000 | 14.812 |
| KM-6501 | 15.031 | 14.845 |
| KM-6502 | 15.062 | 14.875 |
| KM-6503 | 15.094 | 14.907 |
| KM-6504 | 15.125 | 14.937 |
| KM-6505 | 15.156 | 14.970 |
| KM-6506 | 15.187 | 15.000 |
| KM-6507 | 15.250 | 15.062 |
| KM-6508 | 15.312 | 15.125 |
| KM-6509 | 15.375 | 15.187 |
| KM-6510 | 15.437 | 15.250 |
| KM-6511 | 15.500 | 15.312 |
| KM-6512 | 15.562 | 15.375 |
| KM-6513 | 15.625 | 15.437 |
| KM-6514 | 15.687 | 15.500 |
| KM-6515 | 15.750 | 15.562 |
| KM-6516 | 15.812 | 15.625 |
| KM-6517 | 15.937 | 15.750 |
| KM-6518 | 16.000 | 15.812 |
| KM-6519 | 16.031 | 15.845 |
| KM-6520 | 16.062 | 15.875 |
| KM-6521 | 16.094 | 15.907 |
| KM-6522 | 16.125 | 15.937 |
| KM-6523 | 16.156 | 15.970 |
| KM-6524 | 16.187 | 16.000 |
| KM-6525 | 16.250 | 16.062 |
| KM-6526 | 16.312 | 16.125 |
| KM-6527 | 16.375 | 16.187 |
| KM-6528 | 16.437 | 16.250 |
| KM-6529 | 16.500 | 16.312 |
| KM-6530 | 16.562 | 16.375 |
| KM-6531 | 16.625 | 16.437 |
| KM-6532 | 16.687 | 16.500 |
| KM-6533 | 16.750 | 16.562 |
| KM-6534 | 16.812 | 16.625 |
| KM-6535 | 16.937 | 16.750 |
| KM-6536 | 17.000 | 16.812 |
| KM-6537 | 17.031 | 16.845 |
| KM-6538 | 17.062 | 16.875 |
| KM-6539 | 17.094 | 16.907 |
| KM-6540 | 17.125 | 16.937 |
| KM-6541 | 17.156 | 16.970 |
| KM-6542 | 17.187 | 17.000 |
| KM-6543 | 17.250 | 17.062 |
| KM-6544 | 17.312 | 17.125 |
| KM-6545 | 17.375 | 17.187 |
| KM-6546 | 17.437 | 17.250 |
| KM-6547 | 17.500 | 17.312 |
| KM-6548 | 17.562 | 17.375 |
| KM-6549 | 17.625 | 17.437 |
| KM-6550 | 17.687 | 17.500 |
| KM-6551 | 17.750 | 17.562 |
| KM-6552 | 17.812 | 17.625 |
| KM-6553 | 17.937 | 17.750 |
| KM-6554 | 18.000 | 17.812 |
| KM-6555 | 18.031 | 17.845 |
| KM-6556 | 18.062 | 17.875 |
| KM-6557 | 18.094 | 17.907 |
| KM-6558 | 18.125 | 17.937 |
| KM-6559 | 18.156 | 17.970 |
| KM-6560 | 18.187 | 18.000 |
| KM-6561 | 18.250 | 18.062 |
| KM-6562 | 18.312 | 18.125 |
| KM-6563 | 18.375 | 18.187 |
| KM-6564 | 18.437 | 18.250 |
| KM-6565 | 18.500 | 18.312 |
| KM-6566 | 18.562 | 18.375 |
| KM-6567 | 18.625 | 18.437 |
| KM-6568 | 18.687 | 18.500 |
| KM-6569 | 18.750 | 18.562 |
| KM-6570 | 18.812 | 18.625 |
| KM-6571 | 18.937 | 18.750 |
| KM-6572 | 19.000 | 18.812 |
| KM-6573 | 19.031 | 18.845 |
| KM-6574 | 19.062 | 18.875 |
| KM-6575 | 19.094 | 18.907 |
| KM-6576 | 19.125 | 18.937 |
| KM-6577 | 19.156 | 18.970 |
| KM-6578 | 19.187 | 19.000 |
| KM-6579 | 19.250 | 19.062 |
| KM-6580 | 19.312 | 19.125 |
| KM-6581 | 19.375 | 19.187 |
| KM-6582 | 19.437 | 19.250 |
| KM-6583 | 19.500 | 19.312 |
| KM-6584 | 19.562 | 19.375 |
| KM-6585 | 19.625 | 19.437 |
| KM-6586 | 19.687 | 19.500 |
| KM-6587 | 19.750 | 19.562 |
| KM-6588 | 19.812 | 19.625 |
| KM-6589 | 19.937 | 19.750 |
| KM-6590 | 20.000 | 19.812 |
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
