G10 Tubes Glass Reinforced Epoxy - .125" Wall

tubes

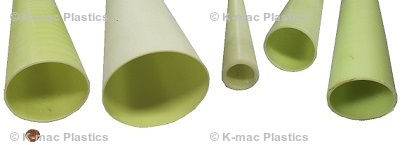

G10 FR4 Tubes 1/8" Wall Thickness

(Micarta) (High Pressure Laminates) G10 Glass Reinforced Epoxy - natural (yellowish to light green) Technical Data Sheet    Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.



NEMA G-10 MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202

G10 FR4 Tubes with a .125" (1/8) Wall Thickness
**Minimum's and Lead Times Apply on Special Order Non Stocked Item

Tolerances (Note: Pricing for Over 4.00" Diameter Wound Only)

Stock # Prices and Details

Outside Diameter Inches

Inside Diameter Inches

KM-1336

0.437

0.188

KM-1340

0.500

0.250

KM-1344

0.562

0.312

KM-1348

0.625

0.375

KM-1352

0.687

0.437

KM-1356

0.750

0.500

KM-1361

0.812

0.562

KM-1367

0.875

0.625

KM-1372

0.937

0.687

KM-1376

1.000

0.750

KM-6169

1.031

0.781

KM-5826

1.062

0.812

KM-6170

1.094

0.843

KM-1385

1.125

0.875

KM-6171

1.156

0.906

KM-6172

1.187

0.937

KM-1391

1.250

1.000

KM-6173

1.312

1.062

KM-6174

1.375

1.125

KM-6175

1.437

1.187

KM-1395

1.500

1.250

KM-6176

1.562

1.312

KM-4794

1.625

1.375

KM-6177

1.687

1.437

KM-1400

1.750

1.500

KM-6179

1.812

1.687

KM-6180

1.937

1.781

KM-1405

2.000

1.750

KM-6181

2.031

1.812

KM-6182

2.062

1.842

KM-6183

2.094

1.875

KM-6184

2.156

1.906

KM-6185

2.187

1.937

KM-6186

2.250

2.000

KM-6187

2.312

2.062

KM-6188

2.375

2.125

KM-6189

2.437

2.187

KM-1415

2.500

2.250

KM-6190

2.562

2.312

KM-6191

2.625

2.375

KM-6192

2.687

2.437

KM-1420

2.750

2.500

KM-6193

2.812

2.562

KM-1425

3.000

2.750

KM-6195

3.031

2.781

KM-6196

3.062

2.812

KM-6197

3.094

2.843

KM-6198

3.125

2.875

KM-6199

3.156

2.906

KM-6200

3.187

2.937

KM-1430

3.250

3.000

KM-6201

3.312

3.062

KM-1435

3.500

3.250

KM-6204

3.562

3.312

KM-6205

3.625

3.375

KM-6206

3.687

3.437

KM-1440

3.750

3.500

KM-6207

3.812

3.562

KM-6208

3.937

3.687

KM-1445

4.000

3.750

KM-6209

4.031

3.781

KM-6210

4.062

3.812

KM-6211

4.094

3.843

KM-6212

4.125

3.875

KM-6213

4.156

3.906

KM-6214

4.187

3.937

KM-1450

4.250

4.000

KM-6215

4.312

4.062

KM-6216

4.375

4.125

KM-6217

4.437

4.187

KM-6218

4.500

4.250

KM-6219

4.562

4.312

KM-6220

4.625

4.375

KM-6221

4.687

4.437

KM-1455

4.750

4.500

KM-6222

4.812

4.562

KM-6223

4.937

4.687

KM-1146Q 5.000 4.750

KM-6224

5.031

4.781

KM-6225

5.062

4.812

KM-6226

5.094

4.842

KM-6227

5.125

4.875

KM-6228

5.156

4.906

KM-6229

5.187

4.937

KM-1460

5.250

5.000

KM-6230

5.312

5.062

KM-6230

5.375

5.125

KM-6232

5.437

5.187

KM-6233

5.500

5.250

KM-6234

5.562

5.312

KM-5023

5.625

5.375

KM-6235

5.687

5.437

KM-1466

5.750

5.500

KM-6236

5.812

5.562

KM-6237

5.937

5.687

KM-5827

6.000

5.750

KM-6238

6.031

5.781

KM-6239

6.062

5.812

KM-6240

6.094

5.843

KM-6241

6.125

5.875

KM-6242

6.156

5.906

KM-6243

6.187

5.937

KM-1472

6.250

6.000

KM-6244

6.312

6.062

KM-6245

6.375

6.125

KM-6246

6.437

6.187

KM-6287

6.500

6.250

KM-6288

6.562

6.312

KM-6289

6.625

6.375

KM-6290

6.687

6.437

KM-6291

6.750

6.500

KM-6292

6.812

6.562

KM-6247

6.937

6.687

KM-6247W

7.000

6.750

KM-6248

7.031

6.781

KM-6249

7.062

6.812

KM-6250

7.094

6.843

KM-6251

7.125

6.875

KM-6252

7.156

6.906

KM-6253

7.187

6.937

KM-6254

7.250

7.000

KM-6255

7.312

7.062

KM-6256

7.375

7.125

KM-6257

7.437

7.187

KM-6258

7.500

7.250

KM-6259

7.562

7.312

KM-6260

7.625

7.375

KM-6261

7.687

7.437

KM-5639

7.750

7.500

KM-6262

7.812

7.562

KM-6263

7.937

7.687

KM-6264

8.000

7.750

KM-6265

8.031

7.781

KM-6266

8.062

7.812

KM-6267

8.094

7.843

KM-6268

8.125

7.875

KM-6269

8.156

7.906

KM-6270

8.187

7.937

KM-5270

8.250

8.000

KM-6271

8.312

8.062

KM-6272

8.375

8.125

KM-6273

8.437

8.187

KM-6274

8.500

8.250

KM-6275

8.562

8.312

KM-6276

8.625

8.375

KM-6277

8.687

8.437

KM-6278

8.750

8.500

KM-6279

8.812

8.562

KM-6280

8.937

8.687

KM-6281

9.000

8.750

KM-6282

9.031

8.781

KM-6283

9.062

8.812

KM-6284

9.094

8.843

KM-6285

9.125

8.875

KM-6286

9.156

8.906

KM-6293

9.187

8.937

KM-6294

9.250

9.000

KM-6295

9.312

9.062

KM-6295

9.375

9.062

KM-6297

9.437

9.187

KM-6298

9.500

9.250

KM-6299

9.562

9.312

KM-6300

9.625

9.375

KM-6301

9.687

9.437

KM-6302

9.750

9.500

KM-6303

9.812

9.562

KM-6304

9.937

9.687

KM-9488Q 10.000 9.750
KM-6305 10.031 9.781
KM-6306 10.062 9.812
KM-6307 10.094 9.842
KM-6308 10.125 9.875
KM-6309 10.156 9.906
KM-6310 10.187 9.937
KM-6311 10.250 10.000
KM-6312 10.312 10.062
KM-6313 10.375 10.125
KM-6314 10.437 10.187
KM-6315 10.500 10.250
KM-6316 10.562 10.312
KM-6317 10.625 10.370
KM-6318 10.687 10.437
KM-6319 10.750 10.500
KM-6320 10.812 10.562
KM-6321 10.937 10.687
KM-6322 11.000 10.750
KM-6323 11.031 10.781
KM-6324 11.062 10.812
KM-6325 11.094 10.843
KM-6326 11.125 10.875
KM-6327 11.156 10.906
KM-6328 11.187 10.937
KM-6329 11.250 11.000
KM-6330 11.312 11.062
KM-6331 11.375 11.125
KM-6332 11.437 11.187
KM-6333 11.500 11.250
KM-6334 11.562 11.312
KM-6335 11.625 11.375
KM-6336 11.687 11.437
KM-6337 11.750 11.500
KM-6338 11.812 11.562
KM-6339 11.937 11.687
KM-418PW 12.000 11.750
KM-6340 12.031 11.781
KM-6341 12.062 11.812
KM-6342 12.094 11.843
KM-6343 12.125 11.875
KM-6344 12.156 11.906
KM-6345 12.187 11.937
KM-6346 12.250 12.000
KM-6347 12.312 12.062
KM-6348 12.375 12.125
KM-6349 12.437 12.187
KM-6350 12.500 12.250
KM-6351 12.562 12.312
KM-6352 12.625 12.375
KM-6353 12.687 12.437
KM-6354 12.750 12.500
KM-6355 12.812 12.562
KM-6356 12.937 12.687
KM-6357 13.000 12.750
KM-6358 13.031 12.781
KM-6359 13.062 12.812
KM-6360 13.094 12.843
KM-6361 13.125 12.875
KM-6362 13.156 12.906
KM-6363 13.187 12.937
KM-6364 13.250 13.000
KM-6365 13.312 13.062
KM-6366 13.375 13.125
KM-6367 13.437 13.187
KM-6368 13.500 13.250
KM-6369 13.562 13.312
KM-6370 13.625 13.375
KM-6371 13.687 13.437
KM-6372 13.750 13.500
KM-6373 13.812 13.562
KM-6374 13.937 13.687
KM-6375 14.000 13.750
KM-6376 14.031 13.781
KM-6377 14.062 13.812
KM-6378 14.094 13.843
KM-6379 14.125 13.875
KM-6380 14.156 13.906
KM-6381 14.187 13.937
KM-6382 14.250 14.000
KM-6383 14.312 14.062
KM-6384 14.375 14.125
KM-6385 14.437 14.187
KM-6386 14.500 14.250
KM-6387 14.562 14.312
KM-6388 14.625 14.375
KM-6389 14.687 14.437
KM-6390 14.750 14.500
KM-6391 14.812 14.562
KM-6392 14.937 14.687
KM-6393 15.000 14.750
KM-6394 15.031 14.781
KM-6395 15.062 14.812
KM-6396 15.094 14.843
KM-6397 15.125 14.875
KM-6398 15.156 14.906
KM-6399 15.187 14.937
KM-6400 15.250 15.000
KM-6401 15.312 15.062
KM-6402 15.375 15.125
KM-6403 15.437 15.187
KM-6404 15.500 15.250
KM-6405 15.562 15.312
KM-6406 15.625 15.375
KM-6407 15.687 15.437
KM-6408 15.750 15.500
KM-6409 15.812 15.562
KM-6409 15.937 15.687
KM-6411 16.000 15.750
KM-6412 16.031 15.781
KM-6413 16.062 15.812
KM-6414 16.094 15.843
KM-6415 16.125 15.875
KM-6416 16.156 15.906
KM-6417 16.187 15.937
KM-6418 16.250 16.000
KM-6419 16.312 16.062
KM-6420 16.375 16.125
KM-6421 16.437 16.187
KM-6422 16.500 16.250
KM-6423 16.562 16.312
KM-6424 16.625 16.375
KM-6425 16.687 16.437
KM-6426 16.750 16.500
KM-6427 16.812 16.562
KM-6428 16.937 16.687
KM-6429 17.000 16.750
KM-6430 17.031 16.781
KM-6431 17.062 16.812
KM-6432 17.094 16.843
KM-6433 17.125 16.875
KM-6434 17.156 16.906
KM-6435 17.187 16.937
KM-6436 17.250 17.000
KM-6437 17.312 17.062
KM-6438 17.375 17.125
KM-6439 17.437 17.187
KM-6440 17.500 17.250
KM-6441 17.562 17.312
KM-6442 17.625 17.312
KM-6443 17.687 17.437
KM-6444 17.750 17.500
KM-6445 17.812 17.562
KM-6446 17.937 17.687
KM-6447 18.031 17.750
KM-6448 18.062 17.812
KM-6449 18.094 17.843
KM-6450 18.125 17.875
KM-6451 18.156 17.906
KM-6452 18.187 17.937
KM-6453 18.250 18.031
KM-6454 18.312 18.062
KM-6455 18.375 18.125
KM-6456 18.437 18.187
KM-6457 18.500 18.250
KM-6458 18.562 18.312
KM-6459 18.625 18.375
KM-6460 18.687 18.437
KM-6461 18.750 18.500
KM-6462 18.812 18.562
KM-6463 18.937 18.687
KM-6464 19.000 18.750
KM-6465 19.031 18.781
KM-6466 19.062 18.812
KM-6467 19.094 18.843
KM-6468 19.125 18.875
KM-6469 19.156 18.906
KM-6470 19.187 18.937
KM-6471 19.250 19.031
KM-6472 19.312 19.062
KM-6473 19.375 19.125
KM-6474 19.437 19.187
KM-6475 19.500 19.250
KM-6476 19.562 19.312
KM-6477 19.625 19.375
KM-6478 19.687 19.437
KM-6479 19.750 19.500
KM-6480 19.812 19.562
KM-6481 19.937 19.687
KM-6482 20.000 19.750

nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
