G10 Tubes Glass Reinforced Epoxy - .250" Wall

G10 FR4 Tubes 1/4" Wall Thickness

(Micarta) (High Pressure Laminates) G10 Glass Reinforced Epoxy - natural (yellowish to light green) Technical Data Sheet    Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.

NEMA G-10 MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202

tubes

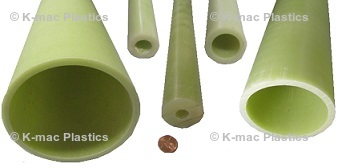

G10 FR4 Tubes with a .250" (1/4) Wall Thickness
