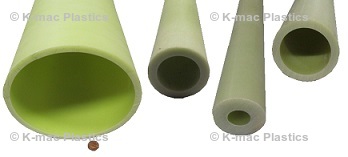

G10 Tubes Glass Reinforced Epoxy - .375" Wall
(Micarta) (High Pressure Laminates)
G10 Glass Reinforced Epoxy - natural
(yellowish to light green) Technical Data Sheet
Chemical Resistance Chart
The most versatile all-around laminate and
composite, this grade is a continuous glass woven fabric base impregnated
with an epoxy resin binder. It has extremely high mechanical strength, good
dielectric loss properties, and good electric strength properties, both wet and
dry.
NEMA G-10 MIL-I-24768/2 GEE, IPC 4101/20, IEC
60893-3 Type 2 EP GC 201
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2
EP GC 202
| G10FR4 Tubes with a .375" (3/8) Wall Thickness | ||
|
**Minimum's and Lead Times Apply
3 Ft Minimums, unless Noted ** Denotes 6 Ft Minimum |
||
| Item Details | Outside Diameter (in.) | Inside Diameter (in.) |
|---|---|---|
| KM-7308 | 1.250 | 0.500 |
| KM-7291 | 1.312 | 0.562 |
| KM-7292 | 1.375 | 0.625 |
| KM-7293 | 1.437 | 0.687 |
| KM-1131G | 1.500 | 0.750 |
| KM-7294 | 1.562 | 0.812 |
| KM-7295 | 1.625 | 0.875 |
| KM-7296 | 1.687 | 0.937 |
| KM-7289 | 1.750 | 1.00 |
| KM-7298 | 1.812 | 1.062 |
| KM-7288 | 1.875 | 1.125 |
| KM-7300 | 1.937 | 1.187 |
| KM-1398 | 2.000 | 1.250 |
| KM-7301 | 2.062 | 1.312 |
| KM-7302 | 2.125 | 1.375 |
| KM-7303 | 2.187 | 1.437 |
| KM-1402 | 2.250 | 1.500 |
| KM-7304 | 2.312 | 1.562 |
| KM-7305 | 2.375 | 1.625 |
| KM-7306 | 2.437 | 1.687 |
| KM-1407 | 2.500 | 1.750 |
| KM-7297 | 2.562 | 1.812 |
| KM-7279 | 2.625 | 1.875 |
| KM-7214 | 2.687 | 1.937 |
| KM-1412 | 2.750 | 2.000 |
| KM-7271 | 2.812 | 2.062 |
| KM-7272 | 2.875 | 2.125 |
| KM-7273 | 2.937 | 2.187 |
| KM-1417 | 3.000 | 2.250 |
| KM-7274 | 3.062 | 2.312 |
| KM-7275 | 3.125 | 2.375 |
| KM-7276 | 3.187 | 2.437 |
| KM-1422 | 3.250 | 2.500 |
| KM-7278 | 3.312 | 2.562 |
| KM-7309 | 3.375 | 2.625 |
| KM-7280 | 3.437 | 2.687 |
| KM-1427 | 3.500 | 2.750 |
| KM-7282 | 3.562 | 2.812 |
| KM-7283 | 3.625 | 2.875 |
| KM-7284 | 3.687 | 2.937 |
| KM-1432 | 3.750 | 3.000 |
| KM-7286 | 3.812 | 3.062 |
| KM-7287 | 3.875 | 3.125 |
| KM-7277 | 3.937 | 3.187 |
| KM-1437 | 4.000 | 3.250 |
| KM-7339 | 4.062 | 3.312 |
| KM-7307 | 4.125 | 3.375 |
| KM-7331 | 4.187 | 3.437 |
| KM-1442 | 4.250 | 3.500 |
| KM-7332 | 4.312 | 3.562 |
| KM-7333 | 4.375 | 3.625 |
| KM-7334 | 4.437 | 3.687 |
| KM-1447 | 4.500 | 3.750 |
| KM-7335 | 4.562 | 3.812 |
| KM-7336 | 4.625 | 3.875 |
| KM-7329 | 4.687 | 3.937 |
| KM-7338 | 4.750 | 4.000 |
| KM-7328 | 4.812 | 4.062 |
| KM-7340 | 4.875 | 4.125 |
| KM-7341 | 4.937 | 4.187 |
| KM-7343 | 5.00 | 4.25 |
| KM-7501 | 5.062 | 4.312 |
| KM-7210 | 5.125 | 4.375 |
| KM-7211 | 5.187 | 4.437 |
| KM-7212 | 5.250 | 4.500 |
| KM-7213 | 5.312 | 4.562 |
| KM-7337 | 5.375 | 4.25 |
| KM-7321 | 5.437 | 4.687 |
| KM-7254 | 5.500 | 4.750 |
| KM-7314 | 5.562 | 4.812 |
| KM-7315 | 5.625 | 4.875 |
| KM-7316 | 5.687 | 4.937 |
| KM-7317 | 5.750 | 5.00 |
| KM-7312 | 5.812 | 5.062 |
| KM-7320 | 5.875 | 5.125 |
| KM-7270 | 5.937 | 5.187 |
| KM-7322 | 6.00 | 5.25 |
| KM-7323 | 6.062 | 5.312 |
| KM-7324 | 6.125 | 5.375 |
| KM-7325 | 6.187 | 5.437 |
| KM-7326 | 6.250 | 5.500 |
| KM-7327 | 6.312 | 5.562 |
| KM-7318 | 6.375 | 5.25 |
| KM-7262 | 6.437 | 5.687 |
| KM-7371 | 6.500 | 5.750 |
| KM-7256 | 6.562 | 5.812 |
| KM-7257 | 6.625 | 5.875 |
| KM-7258 | 6.687 | 5.937 |
| KM-7259 | 6.750 | 6.00 |
| KM-7313 | 6.812 | 6.062 |
| KM-7261 | 6.875 | 6.125 |
| KM-7342 | 6.937 | 6.187 |
| KM-7263 | 7.00 | 6.25 |
| KM-7264 | 7.062 | 6.312 |
| KM-7265 | 7.125 | 6.375 |
| KM-7266 | 7.187 | 6.437 |
| KM-7267 | 7.250 | 6.500 |
| KM-7268 | 7.312 | 6.562 |
| KM-7260 | 7.375 | 6.25 |
| KM-7364 | 7.437 | 6.687 |
| KM-7357 | 7.500 | 6.750 |
| KM-7358 | 7.562 | 6.812 |
| KM-7359 | 7.625 | 6.875 |
| KM-7360 | 7.687 | 6.937 |
| KM-7361 | 7.750 | 7.00 |
| KM-7330 | 7.812 | 7.062 |
| KM-7363 | 7.875 | 7.125 |
| KM-7354 | 7.937 | 7.187 |
| KM-7365 | 8.00 | 7.25 |
| KM-7366 | 8.062 | 7.312 |
| KM-7367 | 8.125 | 7.375 |
| KM-7368 | 8.187 | 7.437 |
| KM-7369 | 8.250 | 7.500 |
| KM-7370 | 8.312 | 7.562 |
| KM-7362 | 8.375 | 7.25 |
| KM-7348 | 8.437 | 7.687 |
| KM-7253 | 8.500 | 7.750 |
| KM-7215 | 8.562 | 7.812 |
| KM-7216 | 8.625 | 7.875 |
| KM-7217 | 8.687 | 7.937 |
| KM-7344 | 8.750 | 8.00 |
| KM-7345 | 8.875 | 8.125 |
| KM-7356 | 8.937 | 8.187 |
| KM-7347 | 9.00 | 8.25 |
| KM-7355 | 9.062 | 8.312 |
| KM-7349 | 9.125 | 8.375 |
| KM-7350 | 9.187 | 8.437 |
| KM-7351 | 9.250 | 8.500 |
| KM-7352 | 9.312 | 8.562 |
| KM-7353 | 9.375 | 8.625 |
| KM-7346 | 9.500 | 8.750 |
| KM-7204 | 9.562 | 8.812 |
| KM-7255 | 9.625 | 8.875 |
| KM-7198 | 9.687 | 8.937 |
| KM-7199 | 9.750 | 9.00 |
| KM-7200 | 9.812 | 9.062 |
| KM-7201 | 9.875 | 9.125 |
| KM-7196 | 9.937 | 9.187 |
| KM-7203 | 10.00 | 9.25 |
| KM-7195 | 10.062 | 9.312 |
| KM-7205 | 10.125 | 9.375 |
| KM-7206 | 10.187 | 9.437 |
| KM-7207 | 10.250 | 9.500 |
| KM-7208 | 10.312 | 9.562 |
| KM-7218 | 10.375 | 9.25 |
| KM-7219 | 10.437 | 9.687 |
| KM-7202 | 10.500 | 9.750 |
| KM-7188 | 10.562 | 9.812 |
| KM-7182 | 10.625 | 9.875 |
| KM-7183 | 10.687 | 9.937 |
| KM-7184 | 10.750 | 10.00 |
| KM-7180 | 10.812 | 10.062 |
| KM-7185 | 10.875 | 10.125 |
| KM-7197 | 10.937 | 10.187 |
| KM-7187 | 11.00 | 10.25 |
| KM-7222 | 11.062 | 10.312 |
| KM-7189 | 11.125 | 10.375 |
| KM-7190 | 11.187 | 10.437 |
| KM-7191 | 11.25 | 10.50 |
| KM-7192 | 11.312 | 10.562 |
| KM-7193 | 11.375 | 10.625 |
| KM-7194 | 11.437 | 10.687 |
| KM-7186 | 11.500 | 10.750 |
| KM-7246 | 11.562 | 10.812 |
| KM-7239 | 11.625 | 10.875 |
| KM-7240 | 11.687 | 10.937 |
| KM-7241 | 11.750 | 11.00 |
| KM-7242 | 11.812 | 11.062 |
| KM-7243 | 11.875 | 11.125 |
| KM-7220 | 11.937 | 11.187 |
| KM-7245 | 12.00 | 11.25 |
| KM-7236 | 12.062 | 11.312 |
| KM-7247 | 12.125 | 11.375 |
| KM-7248 | 12.187 | 11.437 |
| KM-7249 | 12.25 | 11.50 |
| KM-7250 | 12.312 | 11.562 |
| KM-7251 | 12.375 | 11.625 |
| KM-7252 | 12.437 | 11.687 |
| KM-7244 | 12.500 | 11.750 |
| KM-7230 | 12.562 | 11.812 |
| KM-7209 | 12.687 | 11.937 |
| KM-7223 | 12.750 | 12.00 |
| KM-7224 | 12.812 | 12.062 |
| KM-7225 | 12.875 | 12.125 |
| KM-7226 | 12.937 | 12.187 |
| KM-7227 | 13.00 | 12.25 |
| KM-7238 | 13.062 | 12.312 |
| KM-7229 | 13.125 | 12.375 |
| KM-7237 | 13.187 | 12.437 |
| KM-7231 | 13.25 | 12.50 |
| KM-7232 | 13.312 | 12.562 |
| KM-7233 | 13.375 | 12.625 |
| KM-7234 | 13.437 | 12.687 |
| KM-7235 | 13.500 | 12.750 |
| KM-7221 | 13.562 | 12.812 |
| KM-7228 | 13.625 | 12.875 |
| KM-7460 | 13.687 | 12.937 |
| KM-7417 | 13.750 | 13.00 |
| KM-7464 | 13.812 | 13.062 |
| KM-7463 | 13.875 | 13.125 |
| KM-7462 | 13.937 | 13.187 |
| KM-7441 | 14.00 | 13.25 |
| KM-7442 | 14.062 | 13.312 |
| KM-7461 | 14.125 | 13.375 |
| KM-7466 | 14.187 | 13.437 |
| KM-7459 | 14.25 | 13.50 |
| KM-7458 | 14.312 | 13.562 |
| KM-7457 | 14.375 | 13.625 |
| KM-7481 | 14.437 | 13.687 |
| KM-7480 | 14.500 | 13.750 |
| KM-7479 | 14.562 | 13.812 |
| KM-7440 | 14.625 | 13.875 |
| KM-7482 | 14.687 | 13.937 |
| KM-7439 | 14.750 | 14.00 |
| KM-7419 | 14.812 | 14.062 |
| KM-7444 | 14.875 | 14.125 |
| KM-7443 | 14.937 | 14.187 |
| KM-7447 | 15.00 | 14.25 |
| KM-7465 | 15.062 | 14.312 |
| KM-7473 | 15.125 | 14.375 |
| KM-7476 | 15.187 | 14.437 |
| KM-7472 | 15.25 | 14.50 |
| KM-7471 | 15.312 | 14.562 |
| KM-7470 | 15.375 | 14.625 |
| KM-7469 | 15.437 | 14.687 |
| KM-7468 | 15.500 | 14.750 |
| KM-7467 | 15.562 | 14.812 |
| KM-7483 | 15.625 | 14.875 |
| KM-7432 | 15.687 | 14.937 |
| KM-7425 | 15.750 | 15.00 |
| KM-7426 | 15.812 | 15.062 |
| KM-7427 | 15.875 | 15.125 |
| KM-7428 | 15.937 | 15.187 |
| KM-7429 | 16.00 | 15.25 |
| KM-7478 | 16.062 | 15.312 |
| KM-7431 | 16.125 | 15.375 |
| KM-7422 | 16.187 | 15.437 |
| KM-7433 | 16.25 | 15.50 |
| KM-7434 | 16.312 | 15.562 |
| KM-7435 | 16.375 | 15.625 |
| KM-7436 | 16.437 | 15.687 |
| KM-7437 | 16.500 | 15.750 |
| KM-7438 | 16.562 | 15.812 |
| KM-7430 | 16.625 | 15.875 |
| KM-7452 | 16.687 | 15.937 |
| KM-7416 | 16.750 | 16.00 |
| KM-7475 | 16.812 | 16.062 |
| KM-7474 | 16.875 | 16.125 |
| KM-7372 | 16.937 | 16.187 |
| KM-7456 | 17.00 | 16.25 |
| KM-7455 | 17.062 | 16.312 |
| KM-7424 | 17.125 | 16.375 |
| KM-7453 | 17.187 | 16.437 |
| KM-7423 | 17.25 | 16.50 |
| KM-7451 | 17.312 | 16.562 |
| KM-7450 | 17.375 | 16.625 |
| KM-7449 | 17.437 | 16.687 |
| KM-7421 | 17.500 | 16.750 |
| KM-7448 | 17.562 | 16.812 |
| KM-7477 | 17.625 | 16.875 |
| KM-7454 | 17.687 | 16.937 |
| KM-7396 | 17.750 | 17.00 |
| KM-7418 | 17.812 | 17.062 |
| KM-7390 | 17.875 | 17.125 |
| KM-7391 | 17.937 | 17.187 |
| KM-7392 | 18.00 | 17.25 |
| KM-7393 | 18.062 | 17.312 |
| KM-7388 | 18.125 | 17.375 |
| KM-7395 | 18.187 | 17.437 |
| KM-7387 | 18.25 | 17.50 |
| KM-7397 | 18.312 | 17.562 |
| KM-7398 | 18.375 | 17.625 |
| KM-7399 | 18.437 | 17.687 |
| KM-7400 | 18.500 | 17.750 |
| KM-7401 | 18.562 | 17.812 |
| KM-7402 | 18.625 | 17.875 |
| KM-7394 | 18.687 | 17.937 |
| KM-7380 | 18.750 | 18.00 |
| KM-7373 | 18.812 | 18.062 |
| KM-7374 | 18.875 | 18.125 |
| KM-7375 | 18.937 | 18.187 |
| KM-7376 | 19.00 | 18.25 |
| KM-7377 | 19.062 | 18.312 |
| KM-7389 | 19.125 | 18.375 |
| KM-7379 | 19.187 | 18.437 |
| KM-7499 | 19.25 | 18.50 |
| KM-7381 | 19.312 | 18.562 |
| KM-7382 | 19.375 | 18.625 |
| KM-7383 | 19.437 | 18.687 |
| KM-7384 | 19.500 | 18.750 |
| KM-7385 | 19.562 | 18.812 |
| KM-7386 | 19.625 | 18.875 |
| KM-7378 | 19.687 | 18.937 |
| KM-7409 | 19.750 | 19.00 |
| KM-7446 | 19.812 | 19.062 |
| KM-7405 | 19.875 | 19.125 |
| KM-7485 | 19.937 | 19.187 |
| KM-7484 | 20.00 | 19.250 |
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
